Industrial Ladders Introduction
Industrial ladders are generally used in various industrial workshops for aerial operations that need to leave the ground or work scenarios that need to cross equipment. Among them, the more common ones are stairs and treads made of square profiles, which are mainly composed of the main frame of the profile, the plane of the platform stairs and the handrail guardrail. The processing of industrial ladder profiles is simpler, and the safety performance and appearance are also higher.
The industrial ladder series mainly includes two categories of products: industrial ladder profiles and special accessories for industrial ladder series. The maximum use length of industrial ladder profiles is generally 5800~5850mm, and the standard length of the entire profile is in the range of 6000~6020mm. There are two main ways to treat the surface of its profiles, namely alkaline sand oxidation and sandblasting oxidation. Different surface treatment methods can be flexibly selected for different use occasions.
Industrial Ladders Features
Standard accessories, quick connection
The modular safety industrial ladder adopts standard accessories design, which realizes quick connection and greatly shortens the installation time. Standardized accessories not only improve installation efficiency, but also ensure the firmness and stability of the connection.
Modular manufacturing, easy installation
The modular manufacturing process makes the assembly and installation of modular safety industrial ladders easier. Through the combination of modules, ladders of different heights and shapes can be customized according to specific needs, suitable for various work scenarios.
Durable and beautiful
While focusing on the appearance design, the safety industrial ladder also emphasizes the service life. Selected materials and manufacturing processes are used to ensure that every detail can stand the test of time. The modular safety industrial ladder can not only provide stable support during use, but also add a lot of color to the workplace.
Application of Special Accessories for Industrial Ladder Series
Regarding the application scenarios of special accessories for industrial ladder series, we can select some representative products to understand. For joint products, L-type joints are mainly used for vertical connection between two round tube handrail profiles.
X-type joints are mainly used for 135° or 45° connection between four round tube handrail profiles, T-type joints are suitable for vertical connection between three round tube handrail profiles, V-type joints are more common in 45° connection between two round tube handrail profiles. 45° L-type joints (left) are mainly used for 90° or 45° connection between three round tube handrail profiles. 45° T-type joints (right) can be used to achieve 135° or 45° connection between four round tube handrail profiles, 90° L-type joints are common in vertical connection scenarios between three round tube handrail profiles, 135° L-type joints are suitable for 90° or 135° connection between three round tube handrail profiles. Angle joints are applicable to many scenarios and can be used for 120°, 135° and 150° connection between two round tube handrail profiles.
The side support of the industrial ladder series is used to connect the round tube handrail profile and the platform frame. Two set screws need to be pre-installed before installation, the angle adapter plate is mainly used for the connection between the side support and the corner of the platform frame, the application of the angle connector is generally required for the connection of the profile at 30°, 45°, and 60°. The angle connector itself contains a cover plate and a hexagon socket countersunk screw, the platform connector is used for the connection between the pedal profile and the platform frame, the platform connection clamp mainly plays a reinforcement role, which can reinforce the connection between the pedal profile and the platform frame. The fixed round tube hinge is mainly used for the connection between the round tube profile door and the round tube profile, the adapter block is suitable for the connection between the round tube profile and the door lock or other accessories.

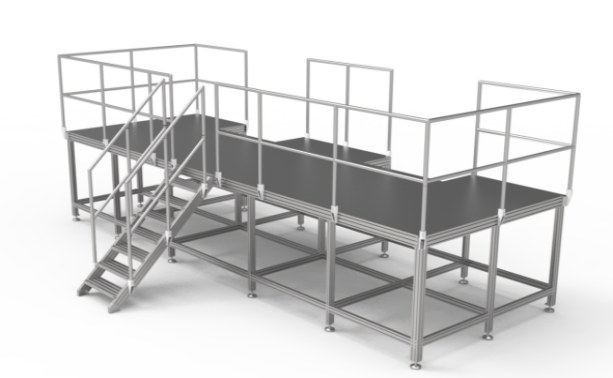

Application case: Industrial cross-line ladder
The industrial cross-line ladder is one of the modular safety industrial ladder series. It is built with industrial aluminum profiles and patterned plates and equipped with guardrails to provide safety for operations.
According to different application scenarios, we can customize cross-line ladders of different styles and uses for you. No welding is required, fast delivery, heavy load-bearing, light weight, easy to disassemble, install and transport. Mainly used in line spanning, partition bridging, maintenance, operation climbing, pedestrian passages and other scenes, widely used in new energy industry, 3C industry, automation equipment, logistics and other fields.
From the specific application scenarios and cases of the above industrial ladder series products, the most widely used industrial ladder accessories are still used to achieve profile connection at various angles. Of course, different models of products have different specific connection scenarios.
