Product Introduction
Handwheel is an important part of manual operation of mechanical equipment. People can control and operate the mechanical equipment by turning the handwheel to realize the function of starting, stopping and adjusting the speed during the working process.
Material: Plastic (PA), stainless steel, aluminum alloy, cast iron, plastic wood (PF).
Surface treatment: Chrome plated and polished / Painted / Galvanized / Electrolytic grinding / Knurling / Polishing.
Handwheels have a wide range of applications and are widely used in machinery, electronics, aviation and other fields. For example, in the mechanical field, handwheels are commonly used in lathes, clamps and other mechanical equipment; in electronic equipment, handwheels are commonly used in volume adjustment and frequency adjustment and other scenarios.
Handwheel Mounting Methods
Handwheels are mounted in the "Keyway Hole Type":
Example: The keyway is machined to match the mounting part of the screw, and the keyway-type handwheel can be mounted on the screw and the top screw tightened.
Square hole type handwheel installation
Example: The mounting part of the screw corresponds to the square processing, and the square-hole type handwheel can be mounted on the screw, and the top screw can be tightened after mounting.
Bolt type handwheel mounting
Example: The screw-locking type handwheel can be mounted on the threaded rod, and then tightened by locking the set screws.
Handwheel "round hole type" mounting
Example: The appropriate dimensions are machined on the mounting surface of the threaded rod, and the top screw is tightened after the round-hole type handwheel is mounted.

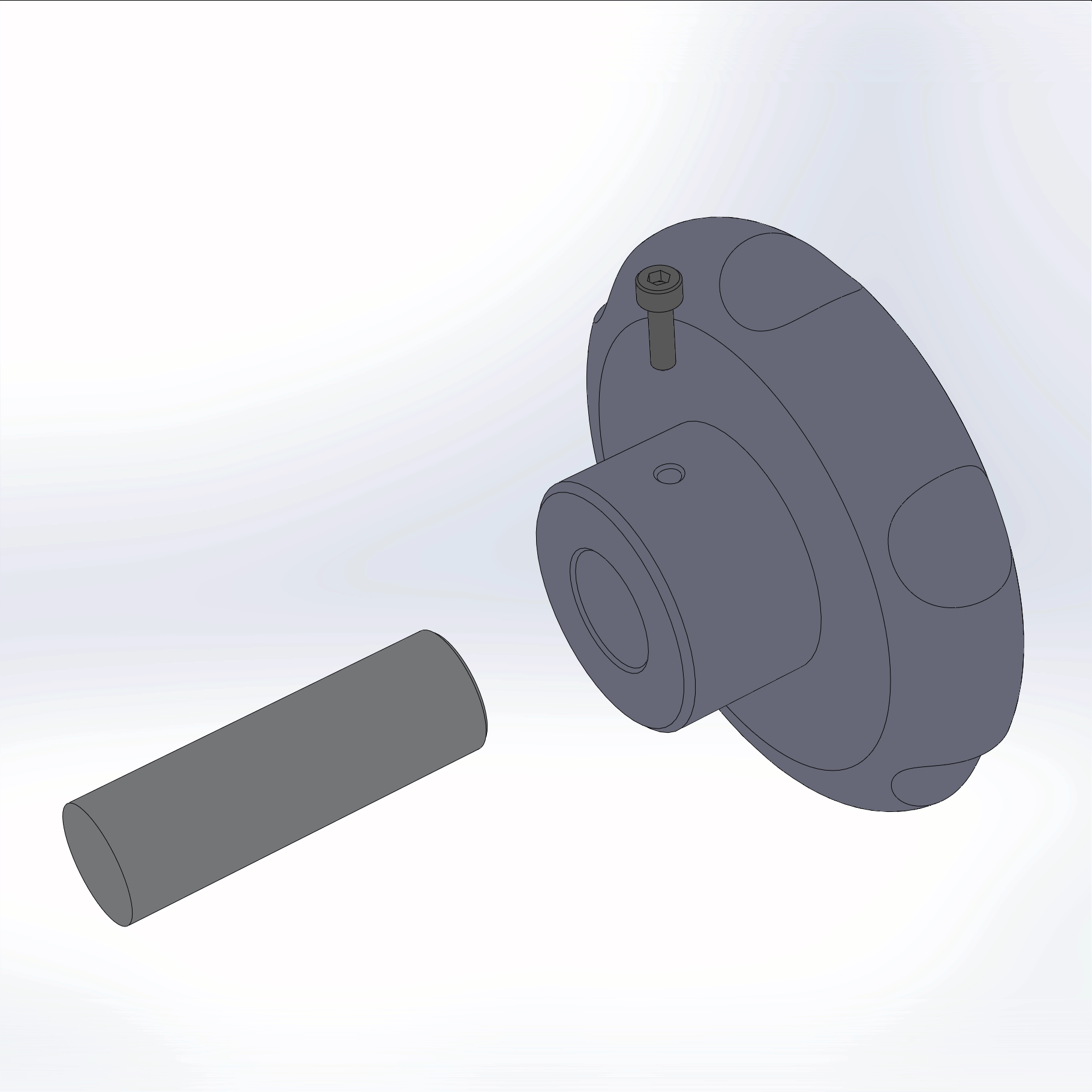

Pin-fixing type handwheel mounting
Example: The corresponding pin hole is machined on the screw mounting surface, and the pin-fixed type handwheel is mounted and the pin is inserted.
