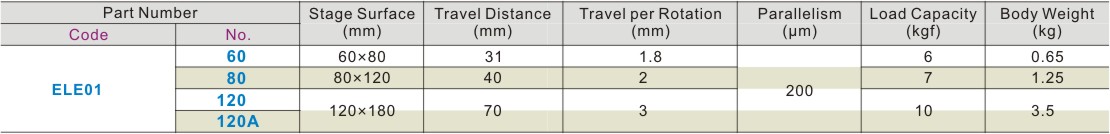

Manual Positioning Stage - Horizontal Z-Axis of Fast Lifting



Type: Manual positioning stage

Guide rail type: Quick lifting type

Transmission: Direction horizontal Z axis

Feeding method: Feed screw driven type

Material: Aluminum alloy

Surface treatment: Black anodized

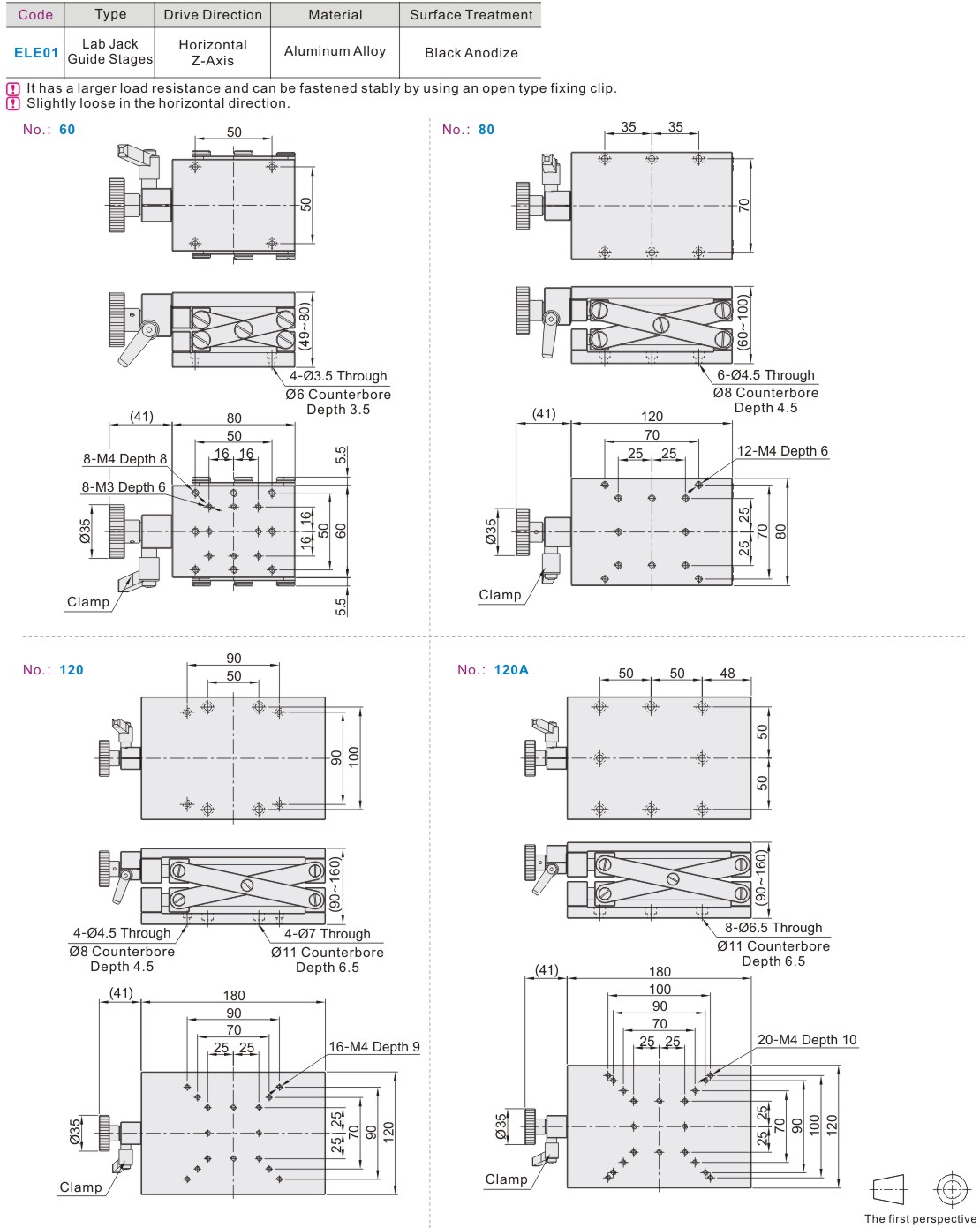

It has a large load resistance and uses an open-type fixing clip for stable fastening. There is some looseness in the horizontal direction.

Detail
Video
