  • Bushing For Fixture With Shoulder L Dimension Configuration Standard

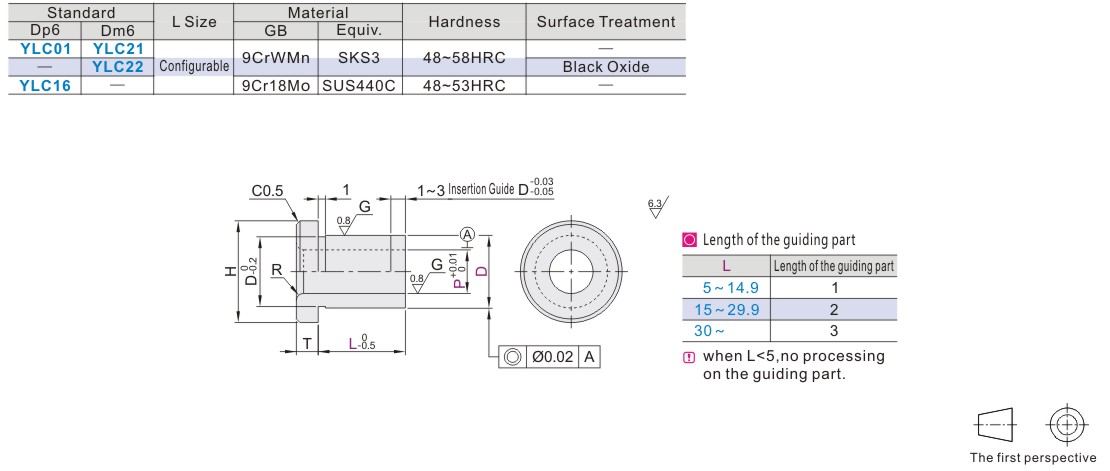

Bushing For Fixture With Shoulder L Dimension Configuration Standard

Type: Bushing For Fixture
Import Surface Shape: Circular
Shoulder Type: Shoulder with Shoulder
Wall Thickness: Standard Type
Size Selection: L Size Specified Type
Material: SKS3/SUS304/SUS440C
Hardness: 48-58HRC/48-53HRC/None
Surface Treatment: None/Blackened/Nonelectrolytic Nickel Plating
Tolerance Grade: Pp6/Pm6

Detail

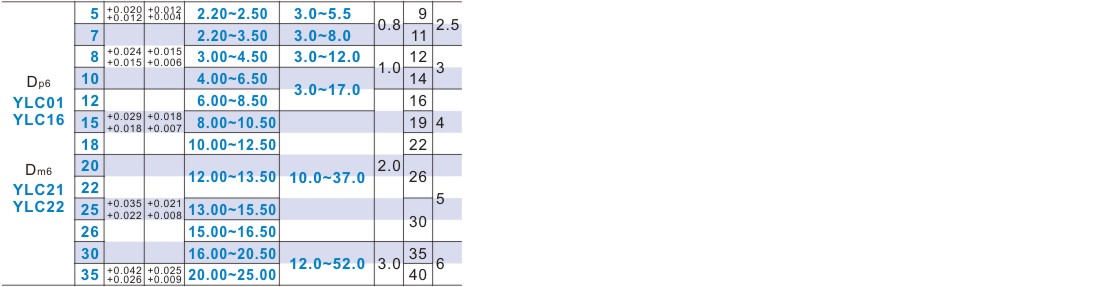

Avaliable machining parameters
