Home  Positioning and fixing guide  Pillar · base · pillar fixing clip  Hexagon Pillar One End Threded One End Tapped L Dimension Screw Configuration Type
  • Hexagon Pillar One End Threded One End Tapped L Dimension Screw Configuration Type

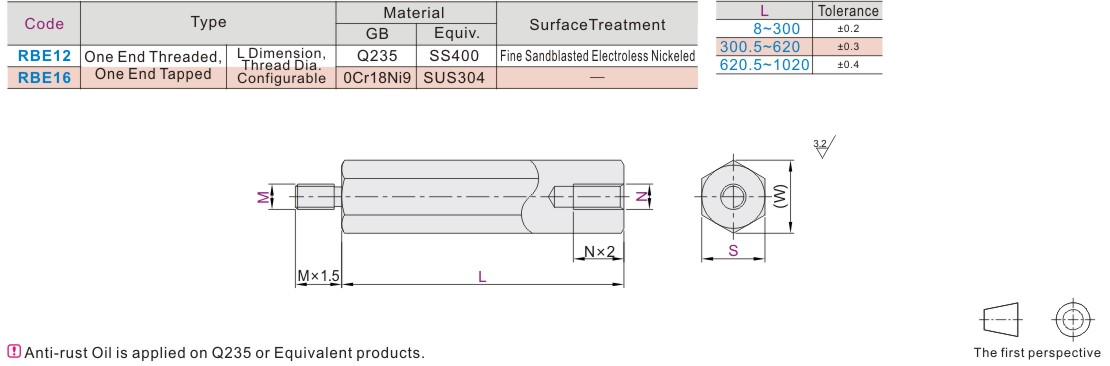

Hexagon Pillar One End Threded One End Tapped L Dimension Screw Configuration Type

Type: Pillar
Single/Component: Single
Pillar Shape: Hexagonal Pillar
Shaft End Shape: One end external thread/One end internal thread
Pillar Material: SS400/SUS304
Pillar Surface Treatment: None/Blackened/Electroless Nickel Plating

Detail

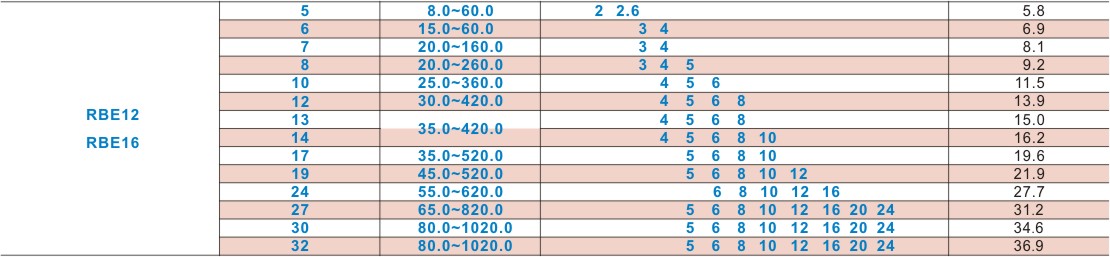

Avaliable machining parameters
