Stop Return Assembly

Frequently asked questions about this product

1. Check components, sometimes when you receive them, or when you receive the main body, there will be bumps and scratches. Is this a poor quality?

It does not affect the use, so it is not bad.

The function of the check component is to prevent the workpiece from being transported in reverse. As long as it does not affect the check function, it will not affect the use.

The main body is made of metal. During transportation and use, the product parts and other workpieces are easy to bump into each other.

2. What factors should be considered when selecting a check component?

First, the main body material and surface treatment. For example: for lightweight type, choose nylon claws.

Secondly, the load needs to be considered. Including: spring part and claw part load.

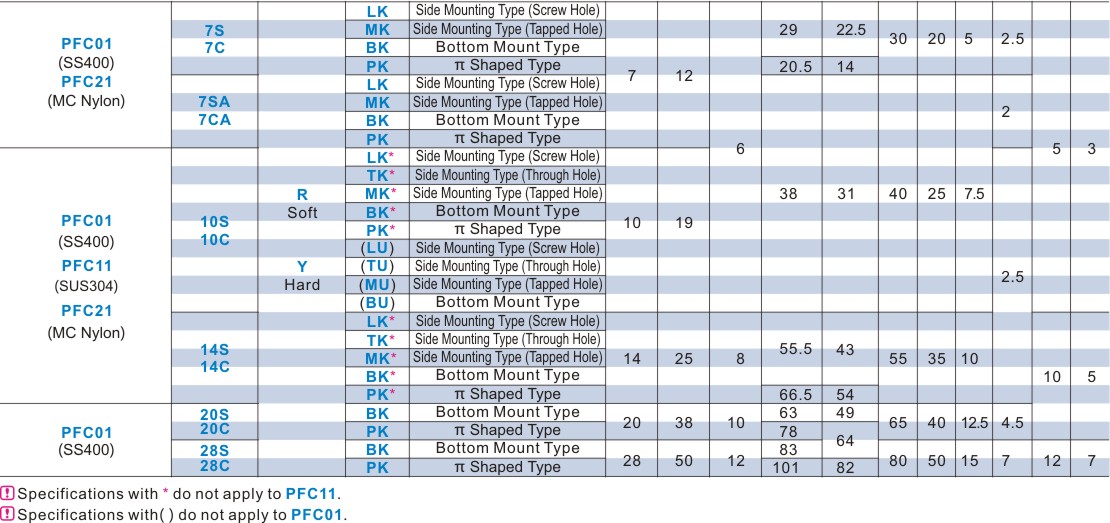

Finally, the stroke needs to be considered. You can refer to the specific values ​​in the catalog.
