Home  Rotational motion  Cantilever Shaft·Hinge Pin  Cantilever Pin Threaded Installation Type With Threaded Type Standard Type Fixed Thread Length Type/Screw Length Configuration Type
  • Cantilever Pin Threaded Installation Type With Threaded Type Standard Type Fixed Thread Length Type/Screw Length Configuration Type

Cantilever Pin Threaded Installation Type With Threaded Type Standard Type Fixed Thread Length Type/Screw Length Configuration Type

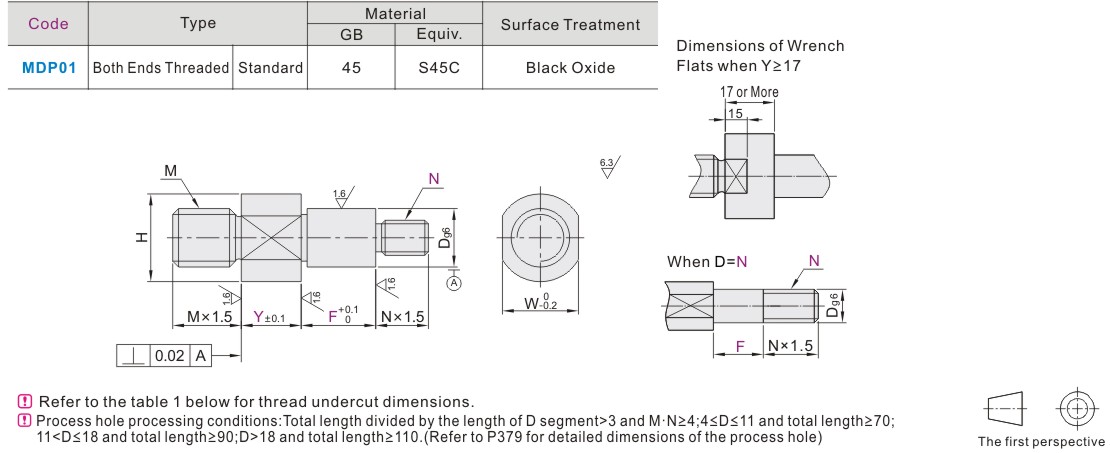

Type: Cantilever Pin

Mounting Part Shaft End Shape: External Thread

Fixing Part Shaft End Shape: External Thread

Shape options: Opposite Side Cut Shape

Size Selection options: Fixed Thread Length/Specified Thread Length

Material options: S45C/SUS304/SCM435

Surface Treatment options: Blackening/None/Electroless Nickel Plating/None

Detail

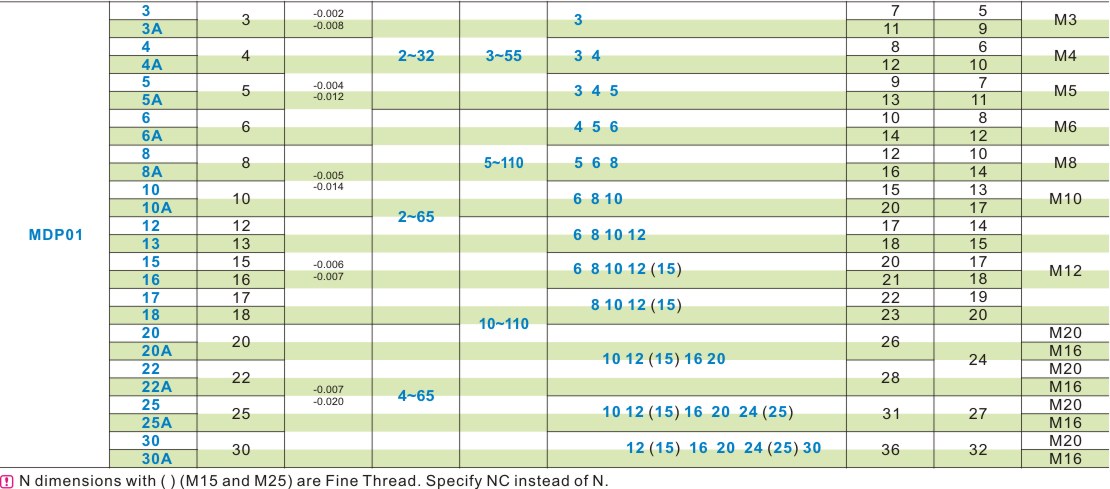

Avaliable machining parameters
