  • Rotating Shaft Both Ends Stepped With Retaining Ring Groove/Both Ends Tapped Standard

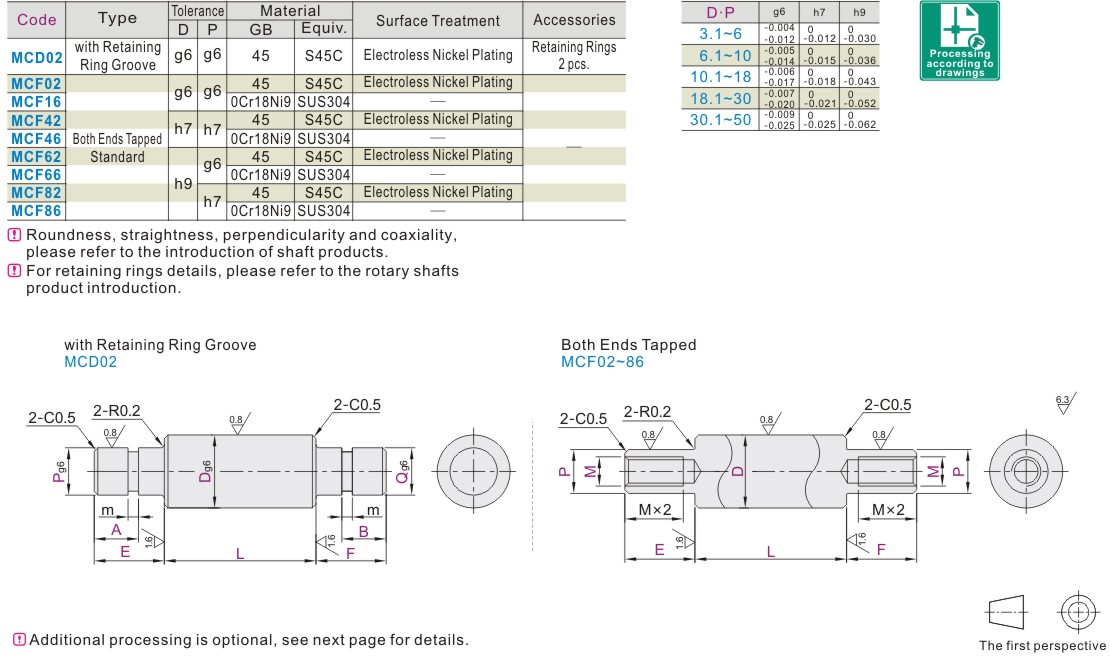

Rotating Shaft Both Ends Stepped With Retaining Ring Groove/Both Ends Tapped Standard

Type: Rotating Shaft

Variant: Two-End Step Type

Shaft End Shape: Two Ends Internal Thread/With Retaining Ring Groove Type

Shaft Processing: Unprocessed Shaft Body

D Tolerance options: g6, h7, h9

P Tolerance options: g6, h7

Material options: S45C/SUS304

Surface Treatment options: Blackening/None/Electroless Nickel Plating

Detail

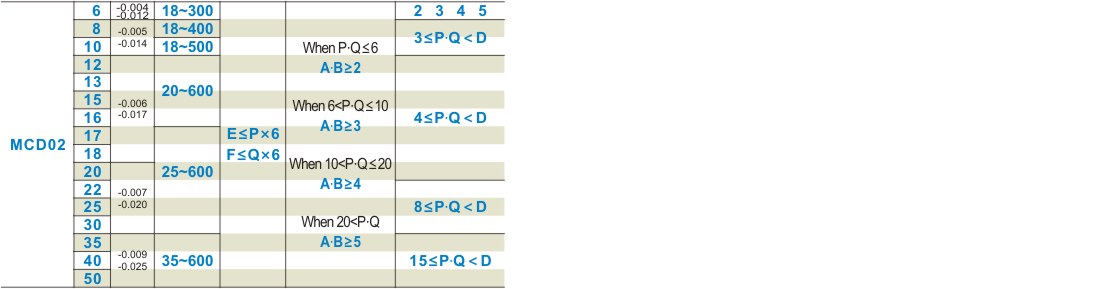

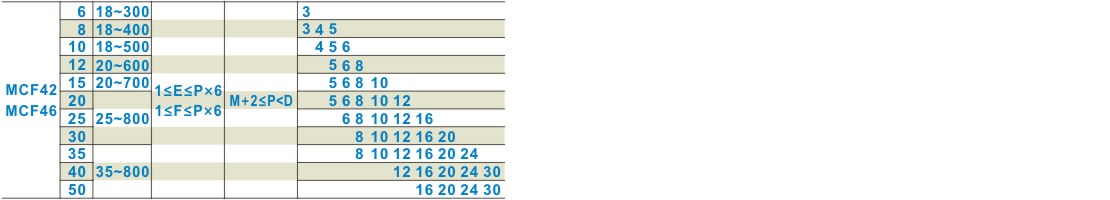

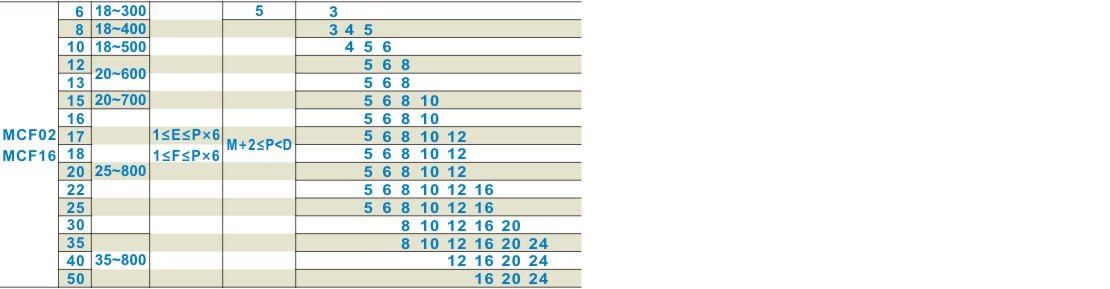

Avaliable machining parameters
