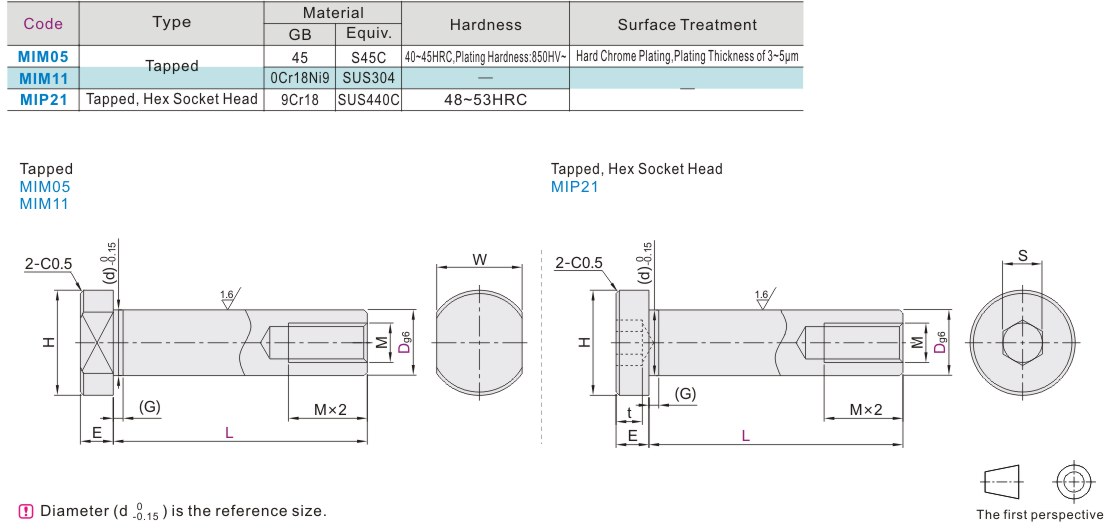

Shoulder Hinge Pin Tapped Type Standard Type/With Inner Hexagon Hole Type

Type: Shoulder Hinge Pin

Fixing Method: Internal Thread Fixing

Shoulder Feature options: Internal Hexagon Socket Shape/Opposite Side Cut Shape

Shaft Diameter Tolerance: Fixed Tolerance

Material options: S45C/SUS304/SUS440C

Hardness options: None/40-45HRC, Coating Hardness 850HV-/40-45HRC/48-53HRC/48-53HRC, Coating Hardness 850HV-

Surface Treatment options: Blackening/None/Electroless Nickel Plating/Hard Chrome Plating, Coating Thickness 3-5μm

Detail

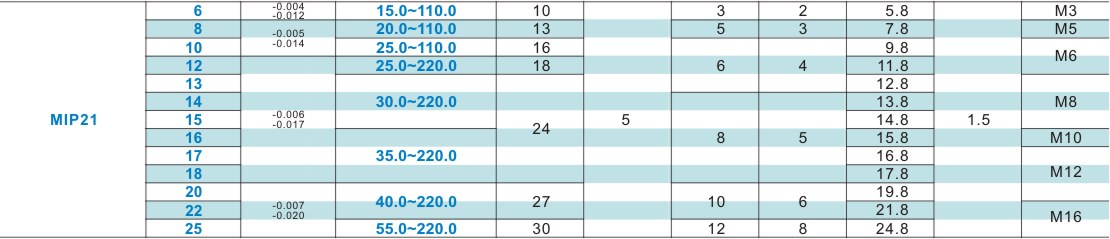

Avaliable machining parameters
