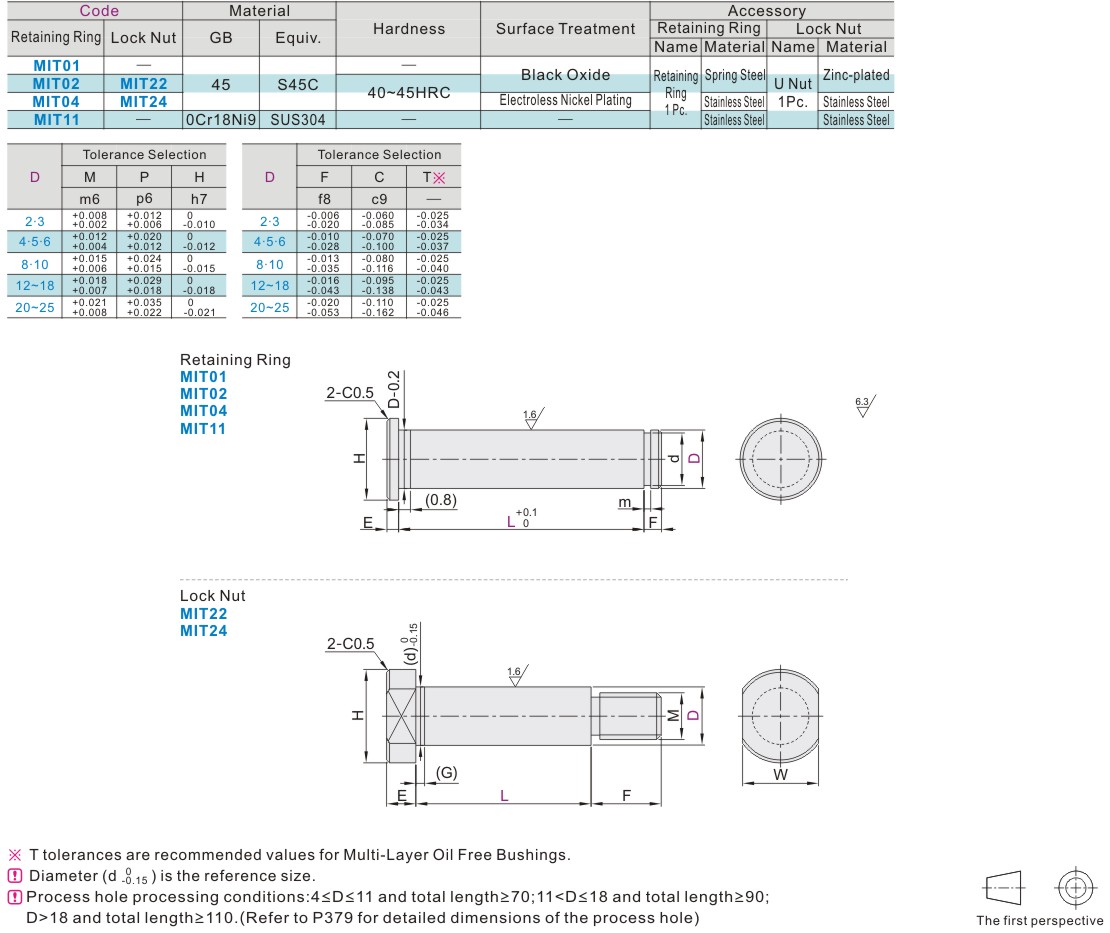

Shoulder Hinge Pin Shaft Diameter Tolerance Selection Type Retaining Ring Fixed Type Nut Fixed Type

Type: Shoulder Hinge Pin

Fixing Method Options: Retaining Ring Fixing/ Nut Fixing

Shoulder Feature Options: With Shoulder/ Opposite Side Cut Shape

Shaft Diameter Tolerance Options: Optional Tolerance

Material Options: S45C/SUS304/SUS440C

Hardness Options: None/40-45HRC, Coating Hardness 850HV-/40-45HRC/48~53HRC

Surface Treatment Options: None/Blackening/None/Electroless Nickel Plating/Hard Chrome Plating, Coating Thickness 3-5μm

Detail

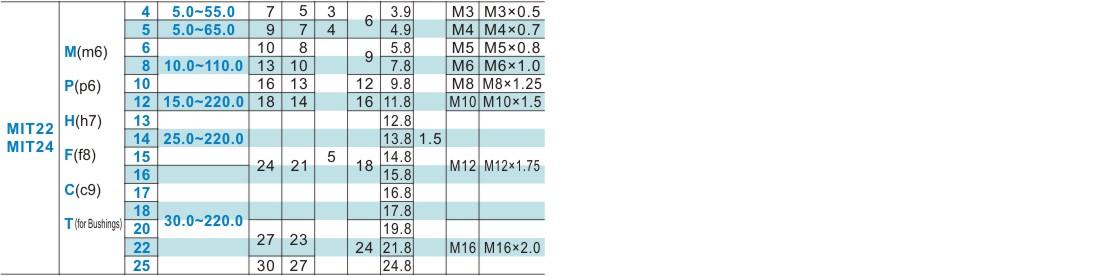

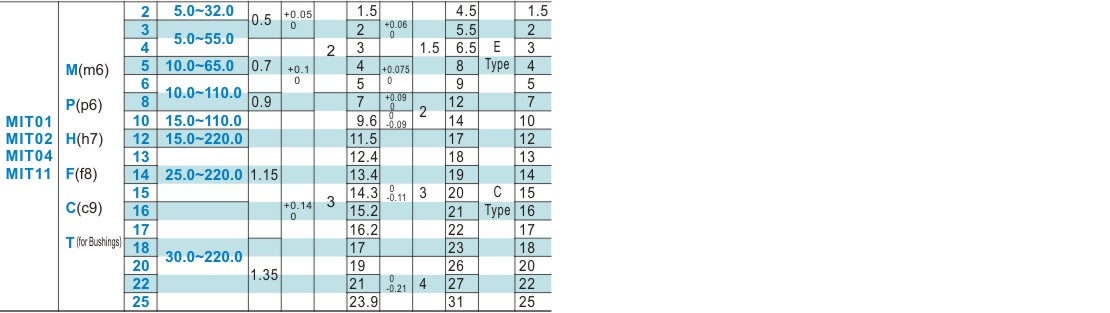

Avaliable machining parameters
