Home  Rotational motion  Rotary shaft  Rotating Shaft One End Stepped One End Tapped Standard
  • Rotating Shaft One End Stepped One End Tapped Standard

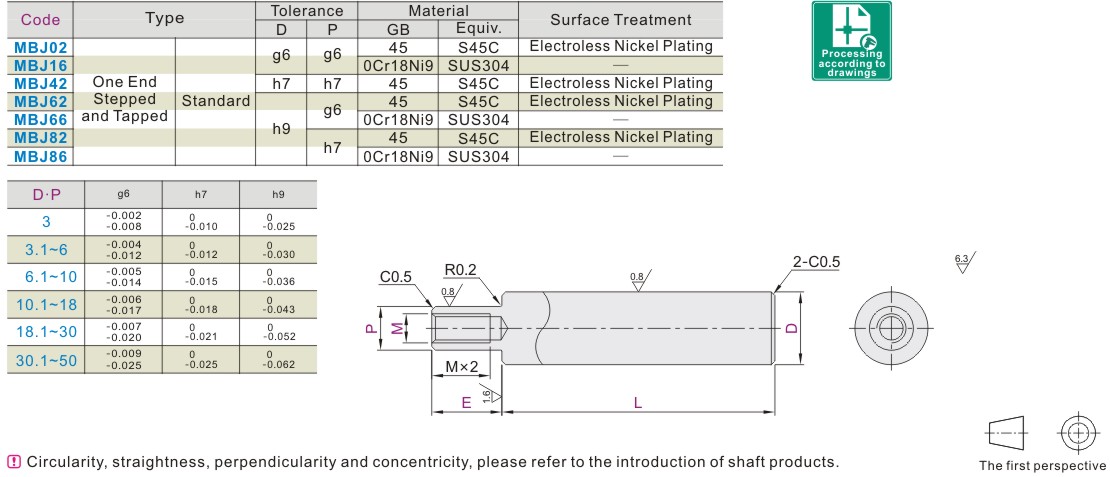

Rotating Shaft One End Stepped One End Tapped Standard

Type: Rotating Shaft

Variant: One-End Step Type

Shaft End Shape: One End Internal Thread Type

Shaft Processing: Unprocessed Shaft Body

D Tolerance options: g6, h7, h9

P Tolerance options: g6, h7

Material options: S45C/SUS304

Surface Treatment options: Blackening/None/Electroless Nickel Plating

Detail

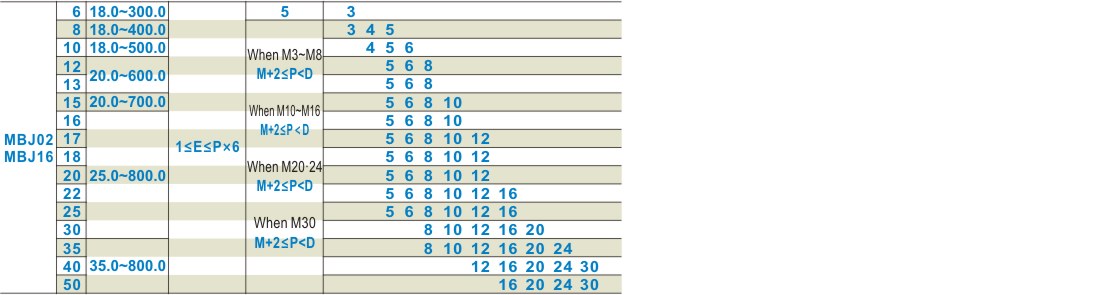

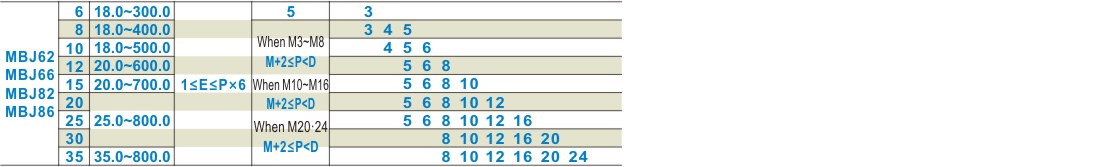

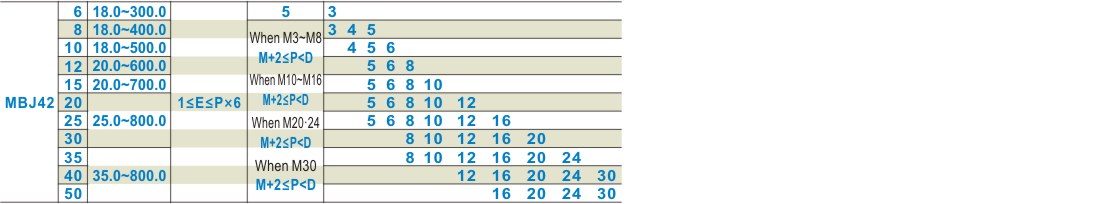

Avaliable machining parameters
