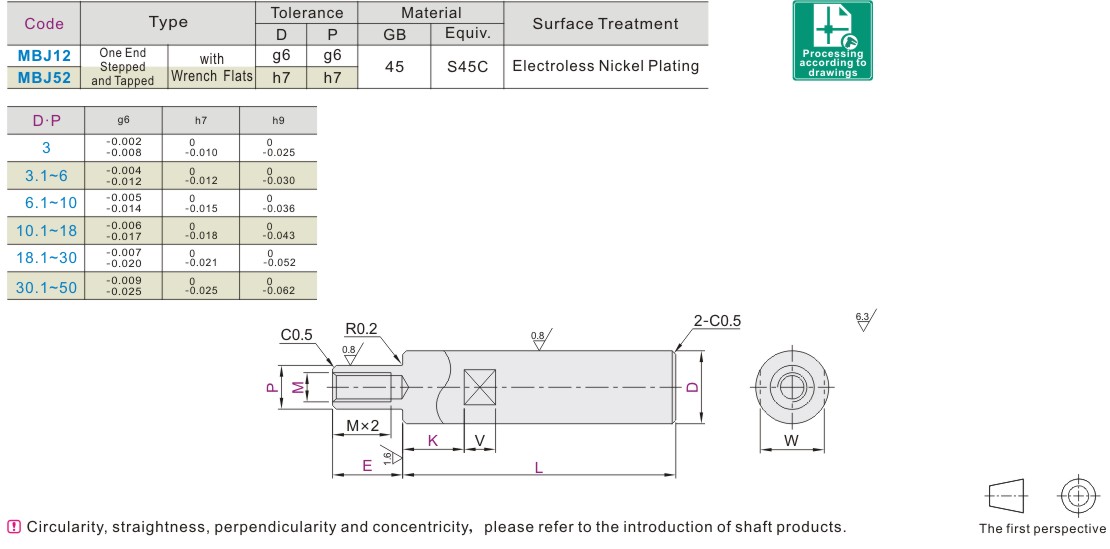

Rotating Shaft One End Stepped One End Tapped With wrench Flats

Type: Rotating Shaft

Variant: One-End Step Type

Shaft End Shape: One End Internal Thread Type

Shaft Processing: With Wrench Slot Shape

D Tolerance options: g6, h7, h9

P Tolerance options: g6, h7

Material options: S45C

Surface Treatment options: Blackening/None/Electroless Nickel Plating

Detail

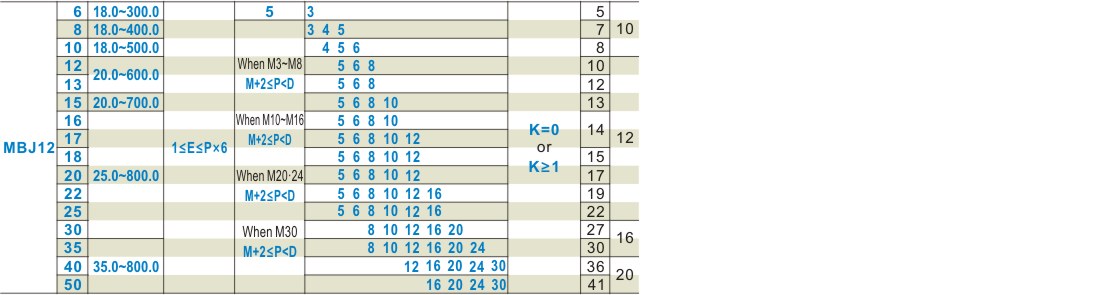

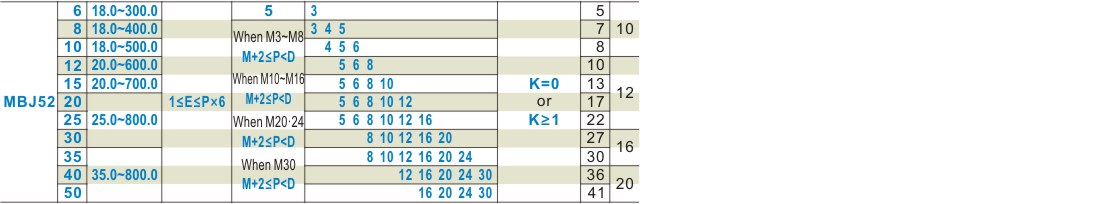

Avaliable machining parameters
