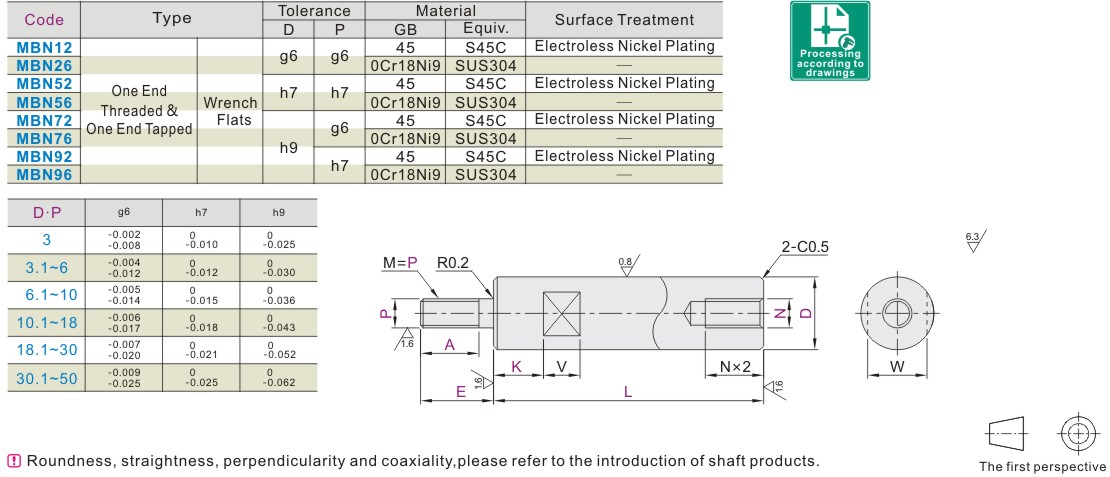

Rotating Shaft One End Stepped One End Threaded One End Tapped With wrench Flats

Type: Rotating Shaft

Variant: One End Step Type

Shaft End Shape options: One End External Thread and the Other End Internal Thread Type

Shaft Processing options: With Spanner Groove Shape

D Tolerance options: g6, h7, h9

P Tolerance options: g6, h7

Material options: S45C/SUS304

Surface Treatment options: Blackening/No Electrolytic Nickel Plating/None

Detail

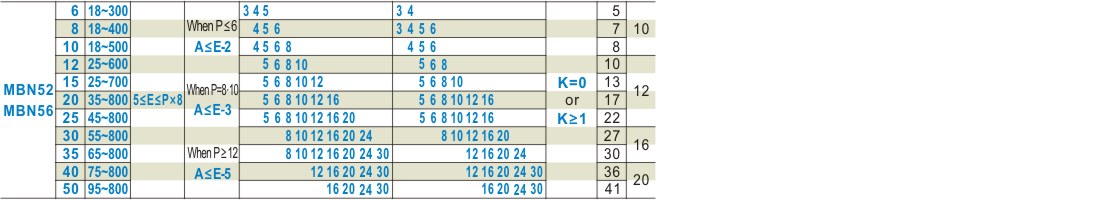

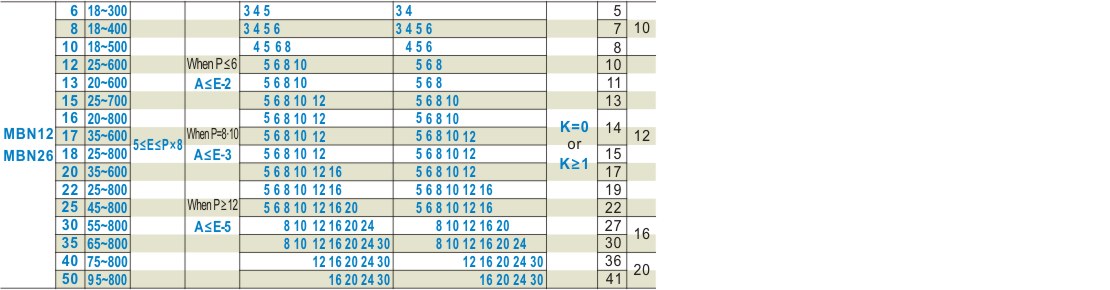

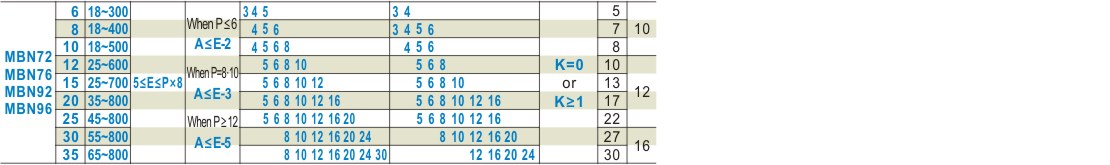

Avaliable machining parameters
