  • Hinge Pin Straight Bar Type Stop Screw Fixed Type/Double-Sided Stop Type

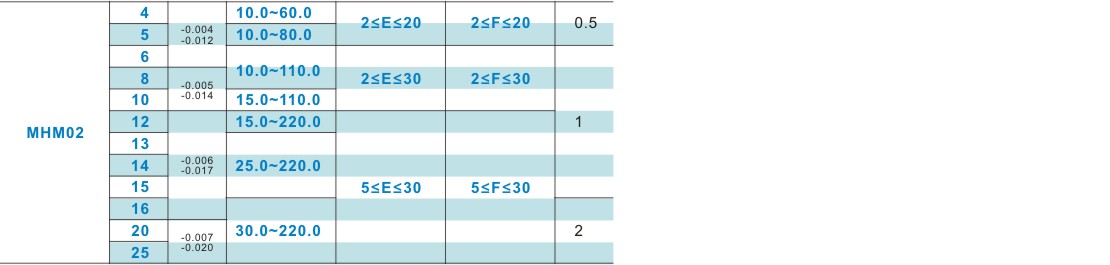

Hinge Pin Straight Bar Type Stop Screw Fixed Type/Double-Sided Stop Type

Type: Hinge Pin Straight Bar

Fixing Method options: Double Stop Face Fixing/Stop Screw Fixing

Shoulder Feature: Without Shoulder

Shaft Diameter Tolerance: Fixed Tolerance

Material options: S45C/SUS304/SUS440C

Hardness options: None/40-45HRC, Coating Hardness 850HV-/40-45HRC/48-53HRC

Surface Treatment options: Blackening/Hard Chrome Plating, Coating Thickness 3-5μm/Electroless Nickel Plating/None
