  • Rotary Shaft Straight Type With stopper groove

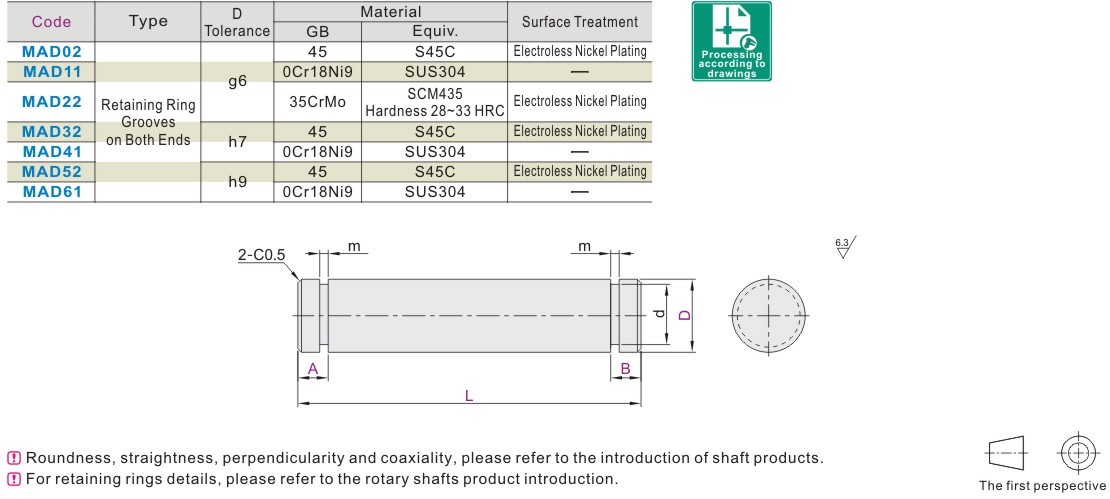

Rotary Shaft Straight Type With stopper groove

Type: Rotary Shaft

Variant: Straight Rod Type

Shaft End Shape: Unprocessed Shaft End

Shaft Processing: With Retaining Ring Groove Shape

D Tolerance options: g6, h7, h9

Material options: S45C/SUS304/SCM435

Hardness options: None/28-33HRC

Surface Treatment options: Blackening/None/Electroless Nickel Plating

Detail

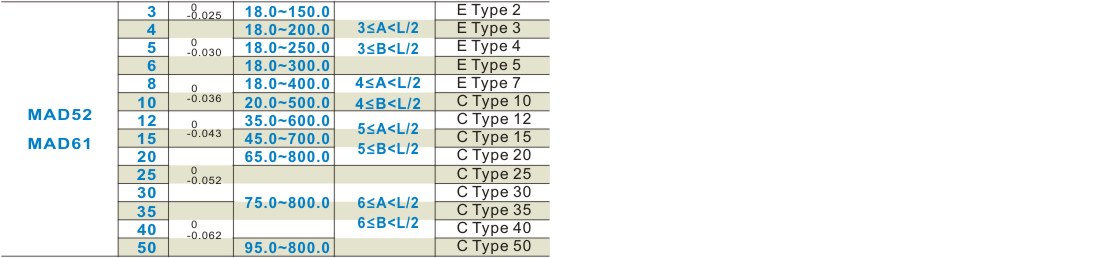

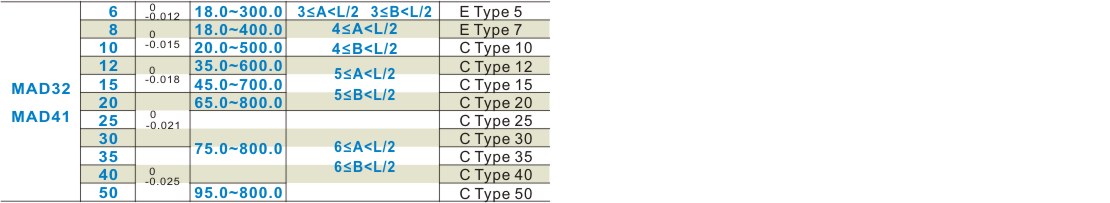

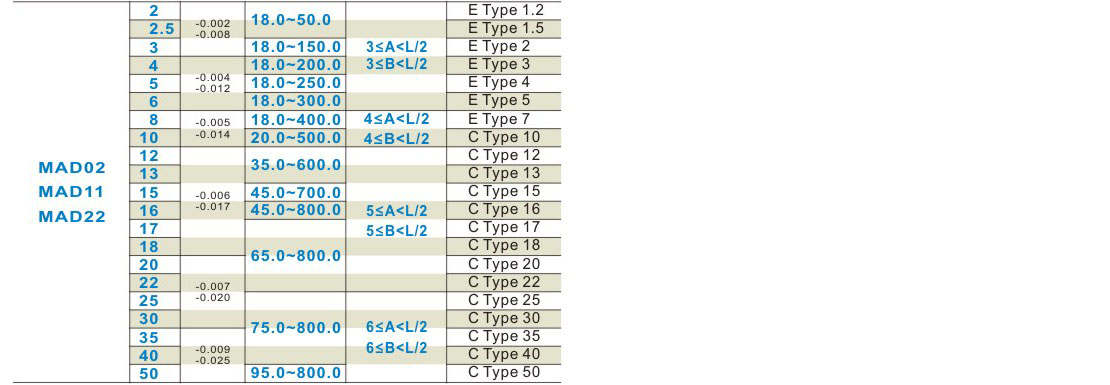

Avaliable machining parameters
