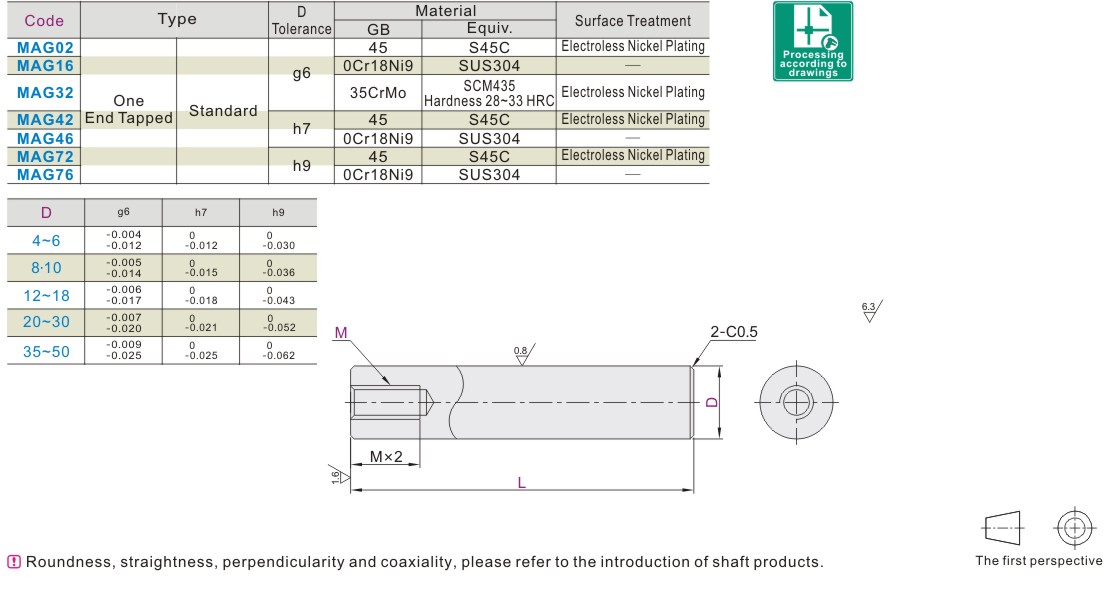

Rotating Shaft Straight Type One End Tapped Standard

Type: Rotating Shaft

Variant: Straight Rod Type

Shaft End Shape: One End Internal Thread Type

Shaft Processing: Unprocessed Shaft Body

D Tolerance options: g6, h7, h9

Material options: S45C/SUS304/SCM435

Hardness options: None/28-33HRC

Surface Treatment options: Blackening/None/Electroless Nickel Plating

Detail

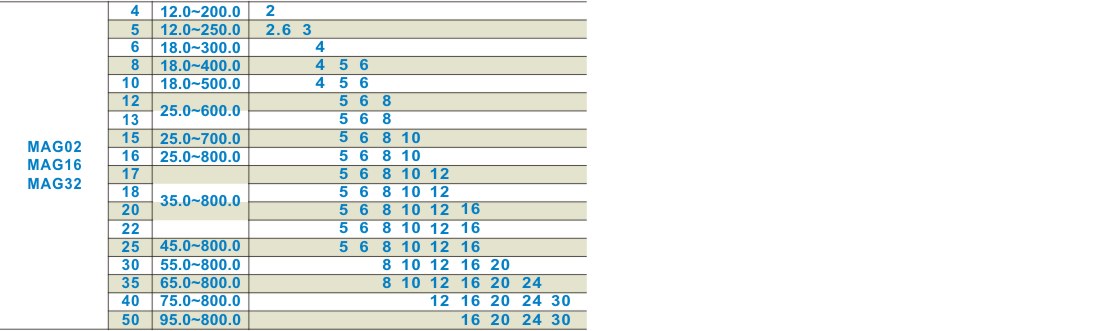

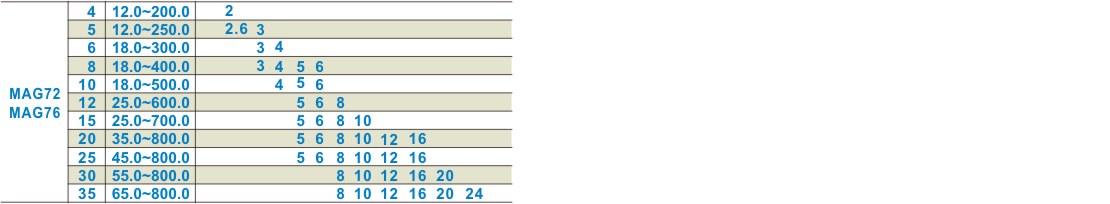

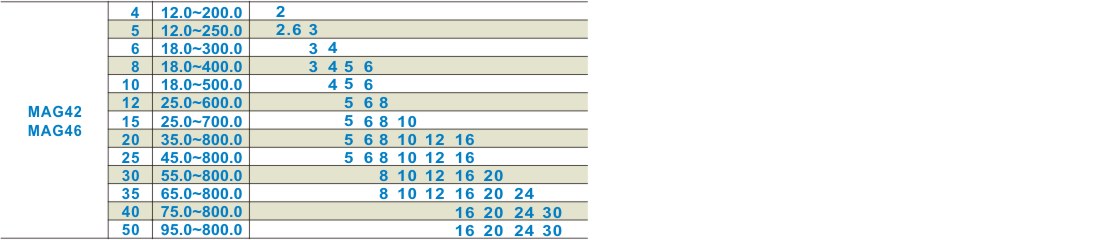

Avaliable machining parameters
