Home  Rotational motion  Rotary shaft  Rotary Shaft Straight Type With key groove
  • Rotary Shaft Straight Type With key groove

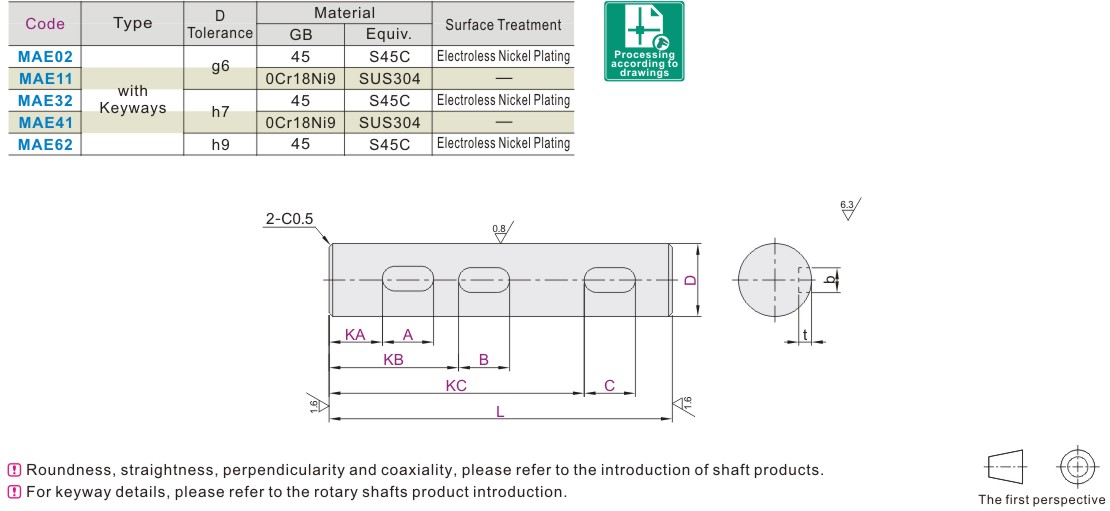

Rotary Shaft Straight Type With key groove

Type: Rotary Shaft

Variant: Straight Rod Type

Shaft End Shape: Unprocessed Shaft End

Shaft Processing: Keyway Slot Shape

D Tolerance options: g6, h7, h9

Material options: S45C/SUS304

Surface Treatment options: Blackening/None/Electroless Nickel Plating

Detail

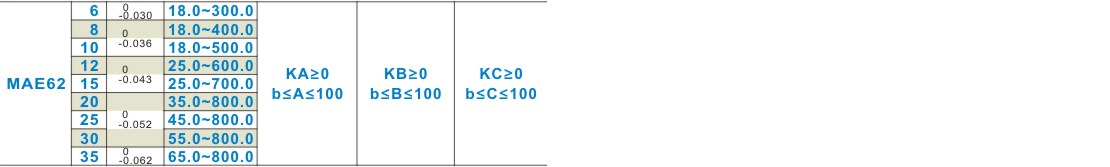

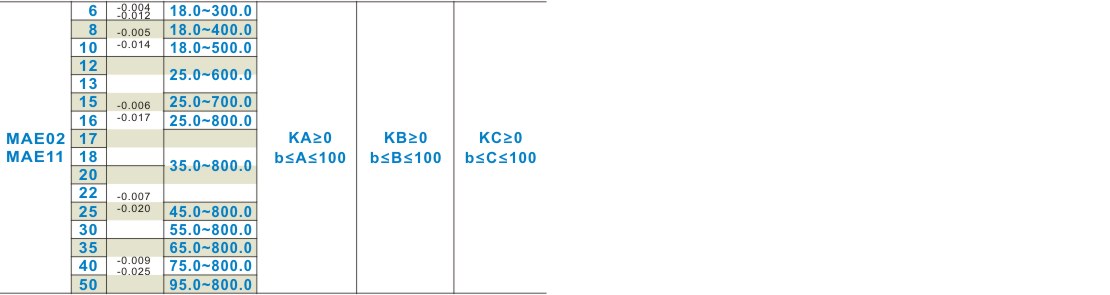

Avaliable machining parameters
