Home  Rotational motion  Rotary shaft  Rotating Shaft Straight Type Both Ends Tapped With Keyway
  • Rotating Shaft Straight Type Both Ends Tapped With Keyway

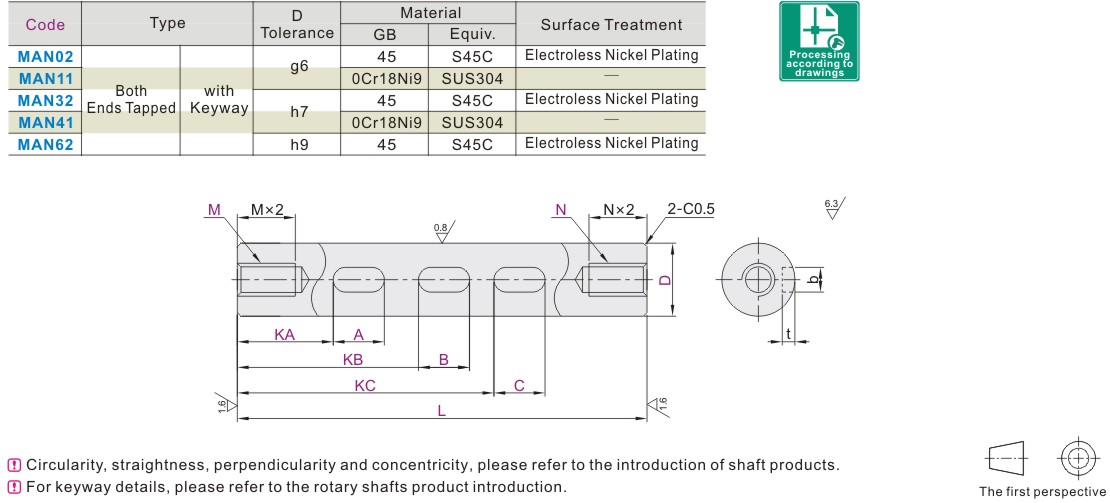

Rotating Shaft Straight Type Both Ends Tapped With Keyway

Type: Rotating Shaft

Variant: Straight Rod Type

Shaft End Shape: Two Ends Internal Thread Type

Shaft Processing: With Keyway Slot Shape

D Tolerance options: g6, h7, h9

Material options: S45C/SUS304

Surface Treatment options: Blackening/None/Electroless Nickel Plating

Detail

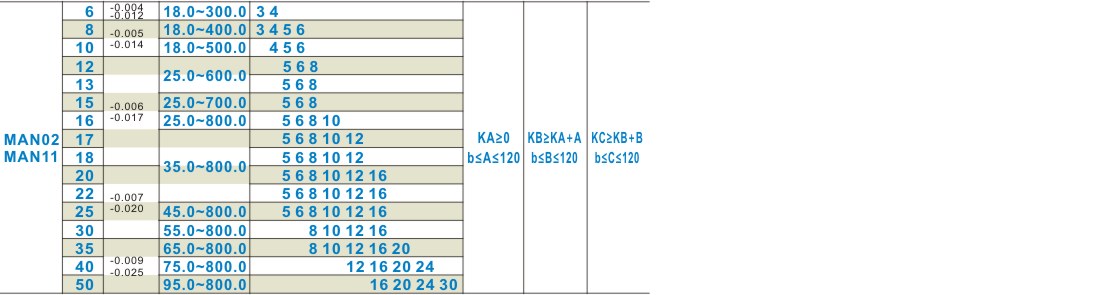

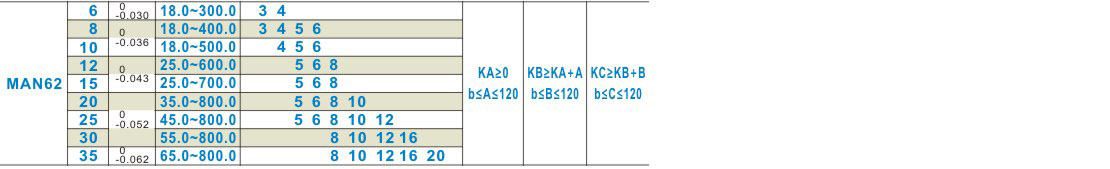

Avaliable machining parameters
