  • Rotating Shaft Straight Type Both Ends Tapped With wrench Flats

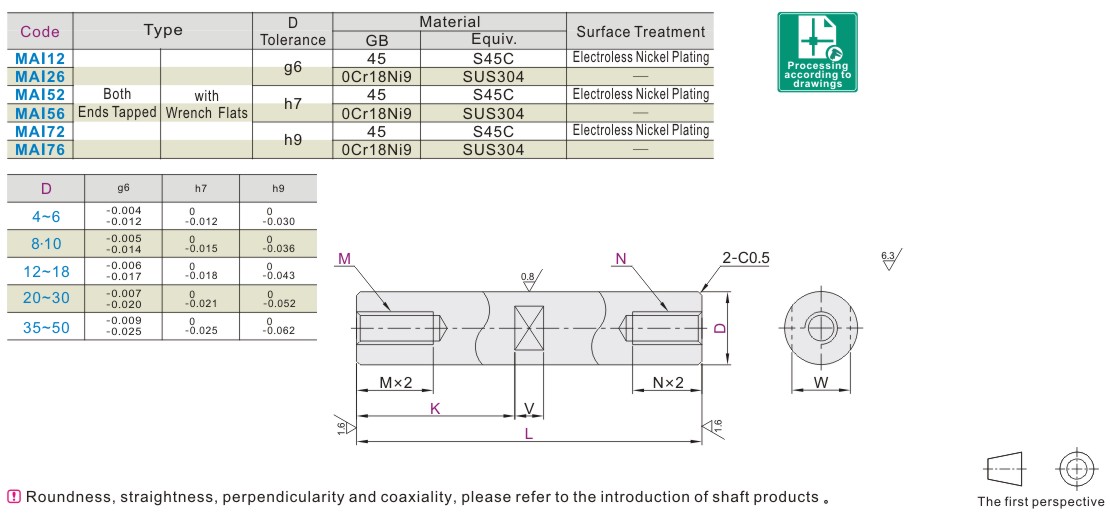

Rotating Shaft Straight Type Both Ends Tapped With wrench Flats

Type: Rotating Shaft

Variant: Straight Rod Type

Shaft End Shape options: Two Ends Internal Thread Type

Shaft Processing options: With Wrench Slot Shape

D Tolerance options: g6, h7, h9

Material options: S45C/SUS304/SCM435

Hardness options: None/28-33HRC

Surface Treatment options: Blackening/None/Electroless Nickel Plating

Detail

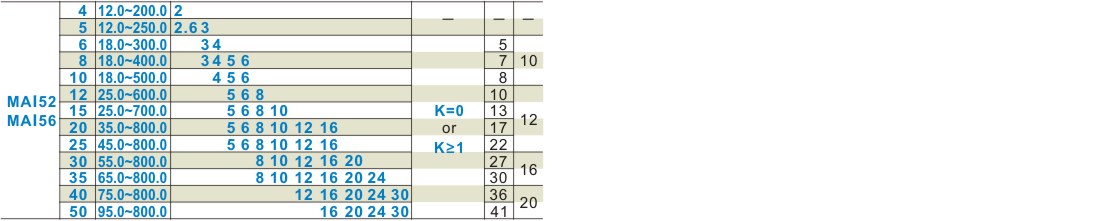

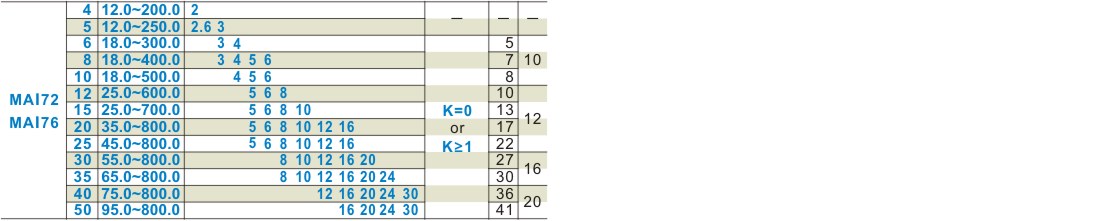

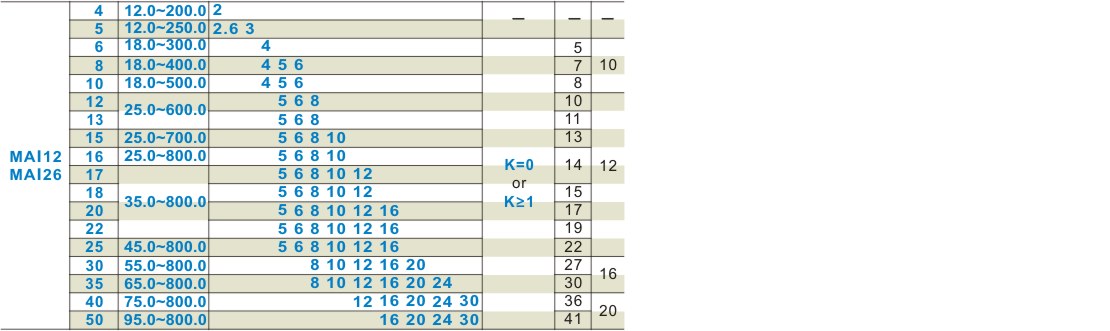

Avaliable machining parameters
